Nir Spectroscopy. Near Infrared Reflectance Spectroscopy

Spettroscopia NIR

NEAR INFRARED REFLECTANCE SPECTROSCOPY

NIRS (Near Infrared Reflectance Spectroscopy) is a method of testing that utilises certain physical properties of the material, specifically their interaction with near infrared radiation. This interaction provides information on the chemical composition of the sample.

The time required for a single test ranges from a few seconds to a few minutes.

This method allows for rapid testing of numerous samples with a notable reduction in time and cost compared to traditional techniques. This is possible largely thanks to the simplicity of the preparatory stages and the variety of possible tests. The ability to reuse the sample and the lack of use of reagents complete the image for the advantages of this technology.

NIR testing provides excellent correlation with traditional testing, dependent on the “instructions” given to the system: the preparation of samples and plentiful provisions of baseline chemical tests
The Laboratorio Analisi Zootecniche has created calibration/reading curves using the standard chemical testing laboratory and has identified the ideal means of preparing samples, especially for unifeed and silage; the calibration curves are periodically updated depending on agronomic variables [the calibrations are developed using WIN-ISI and UCAL (Unity Scientific) software to guarantee maximum accuracy and robustness].
.

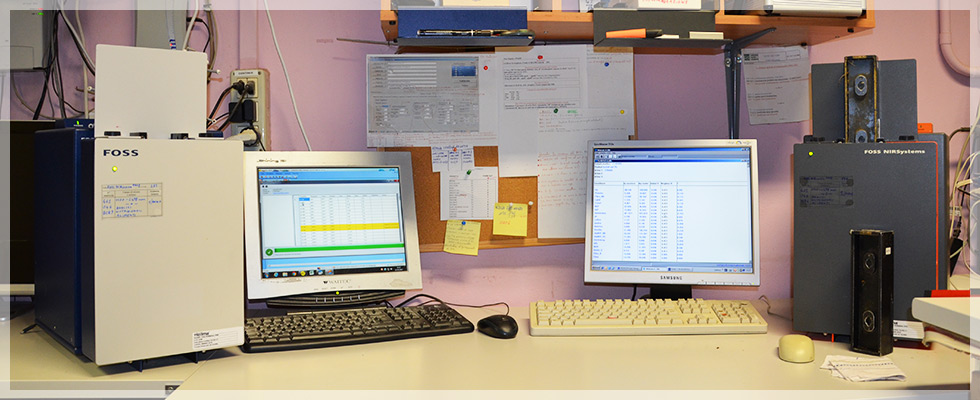

Laboratorio Analisi Zootecniche - Gonzaga, Mantova


The spectral range is from 1100 to 2498nm. To add to the service of rationing parameters, the laboratory has begun a collaboration with Dairyland (USA) for the digestibility of NDF and starch (see “remote NIRS technique”).

A few examples of sample preparation:

  PRIMARY PHASE SECONDARY PHASE THIRD PHASE FOURTH PHASE
Unifeed Grinding with blade cutter
40L
Drying in stove
16 hours
Grinding in mill
0.5mm
NIR scanning
of dry ground products
Silage/corn silage Grinding with blade cutter
40L
/ / NIR scanning
of unaltered
ground products
Hay Grinding with blade cutter
40L
/ Grinding in mill
0.5mm
NIR scanning
of ground products

Alongside this, the laboratory makes use of the highest level of Italian university supervision/consultancy in the field of NIR.

The table below lists the parameters analysed for each food matrix

Nella tabella sottostante sono elencati i parametri analizzati per ciascuna matrice alimentare

The method is not applicable to a complete test of all elements, such as, for example, minerals.

Laboratorio Analisi Zootecniche - Gonzaga, Mantova


NIR IMAGES

Galleria NIRSee a range of examples of tests carried out using the
NIR spectroscopy method. | » GO TO GALLERY

Parameters analysed by NIR

  Corn silage Silage
Mixed
Unifeed Hay Feed Soy
Sunflower
Rapeseed
Corn
Bran
Millfeed
Barley
Bovine waste Fresh
chopped
forage
Moisture x x x x x x x x x
Crude Protein x x x x x x x x x
Protein Solubility     x x
AD-ICP     x x
Crude Fiber x x x x x x x   x
Fat (EE) x x x x x x x x x
Ash x x x x x x x x x
Starch x x x x x   x x x
NDF x x x x       x x
ADF x x x x       x x
ADL x x x x       x x
Sugars     x x
Ammonia x x
pH x x
Lactic acid x x
Acetic acid x x
Butyric acid x x
Alcohol x




Remote NIRS technique: NDFD, uNDF and IVSD

Dairyland Laboratories

The Zootechnical Testing Laboratory began its collaboration with Dairyland Laboratories Inc Arcadia – WI (USA) in January 2017; through a process of equipment standardisation we have been able to align our equipment with that of Dairyland: as a result, we are now able to work with new parameters present in American calibrations. The zootechnical foods are processed at our headquarters and the multi-spectral scans are taken using our equipment. The NIR multi-spectral scans are then sent to Dairyland. Using their equations, they then rework the data in the same day.

The most important parameters are the digestibility of the NDF (NDFDD) and the undigested NDF (uNDF) in forage crops, as well as the digestibility of the starch (IVSD, 7h: In Vitro Starch Digestion at 7 hours) in corn as indicated in the “NIR parameters” table.

Remote NIRS technique →
